DRAKE™ TECHNOLOGY
(Advanced Sampled Wave Processing)
20 main stops
Two 61-note manuals (C-C) with dynamic control
Pedalboard:
- PRAELUDIUM 230: 30-note Pedalboard (C-F) straight-radiating or parallel
- PRAELUDIUM 227: 27-note Pedalboard (C-D) straight-parallel
10 general combination action (10 memories) for a total of 100 combinations
Stage thumb piston sequencer
Set and General Cancel pistons. Automatic return to hand-set registration
20 reversible thumb pistons with indicator lights
Swell Expression Pedal
Plenum I, II, Tutti: all programmable
Slider controls for Great and Pedal volume
Manual Inversion
Short Octave on Manuals and Pedalboard
Automatic Pedal
Automatic Pedal as PEDAL to GREAT monophonic coupler of the Great and Pedal stops
9 Historical and 4 programmable temperaments
Transposer (-6 / +6 semitones)
Master Volume
Programmable Digital Reverb (including internal 3-D effect)
Stereo Headphone Output
Double independent MIDI connection (In-Out-Thru)
Personal Computer Plug (PC, Mac)
Internal amplification: 3 channel amplification system, 1 X 140W, 2 X 70W
Speakers:
10" woofer (bass reflex)
2 middle range
2 tweeters
Output Sound Channelling: 11 divided Windchest Layouts™ per Stop
2 External Output Channels
Internal/External amplifications: Programmable channels per Stop, Family, Division and Effects
Programmable Auxiliary Stereo Input
Digital Equalisation System with 5 programmable bands (on Internal/External Amplification)
2 Microphone Inputs (with separate sensitivity controls)
Voicing functions (per Note, Stop and Division)
General controls, programmable by Built-in PROGRAMMING SECTION™ with alphanumeric display (4 x 20)
Elegant wooden console: dark or light oak
Rocker Tabs console
Optional adjustable AHLBORN-TWK (Tracker Wooden Keyboards)
Total Pipe Organ compatibility with P.O.M.I. (Pipe Organ Midi Interface)
Dimensions (W x H x D):
- PRAELUDIUM 230:
1.310 x 1.140 x 680 - 970* mm / 51,57" x 44,88" x 26,77" - 38,19"* (*with Pedalboard)
- PRAELUDIUM 227:
1.140 x 1.140 x 680 - 970* mm / 44,88" x 44,88" x 26,77" - 38,19"* (*with Pedalboard)
Weight:
- PRAELUDIUM 230: 125 kg / 275,5 lbs (without Bench and Pedalboard)
- PRAELUDIUM 227: 114 kg / 251,3 lbs (without Bench and Pedalboard)

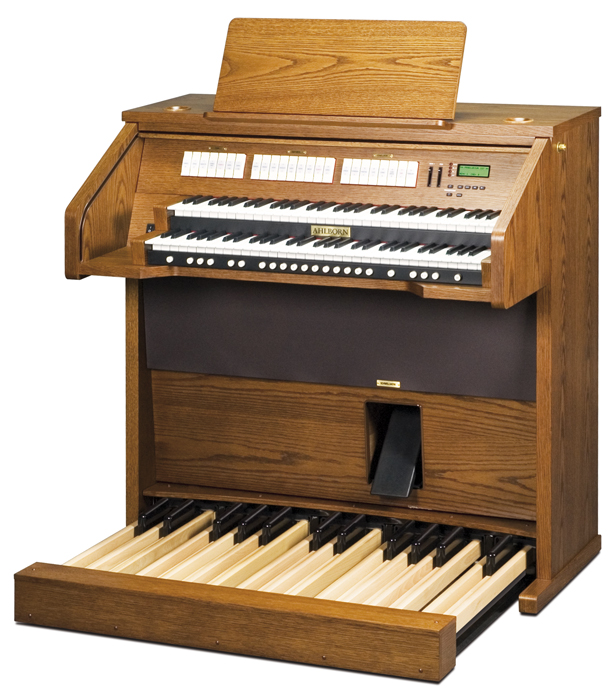

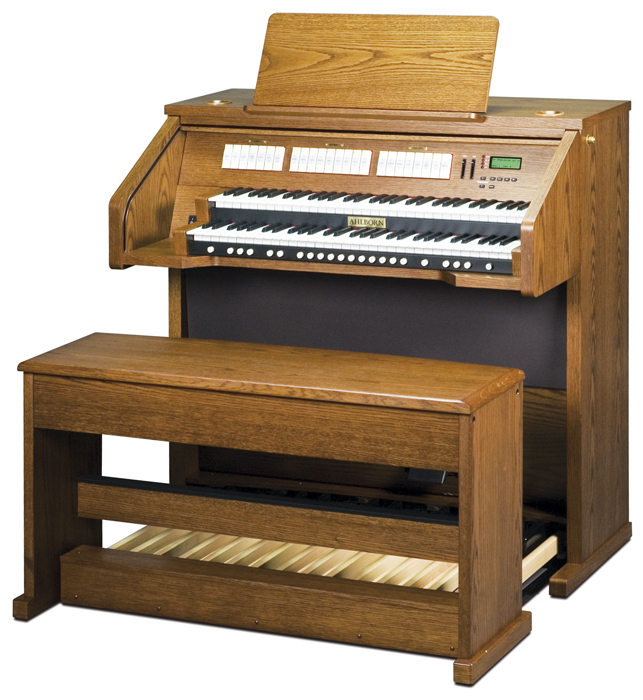

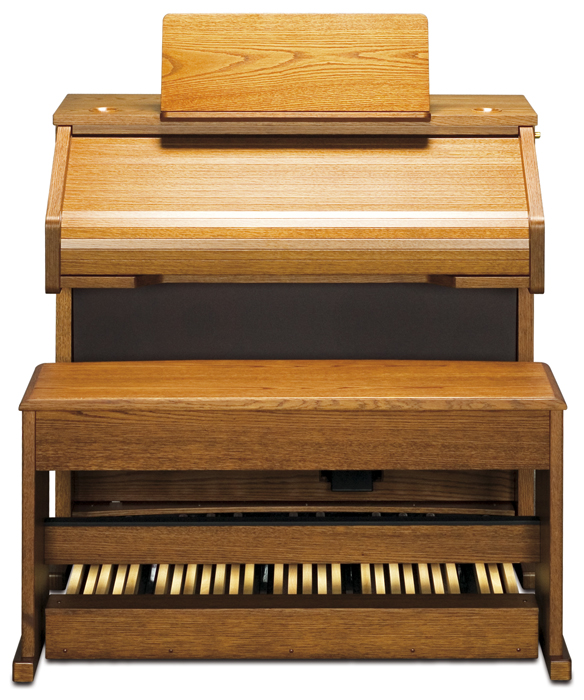

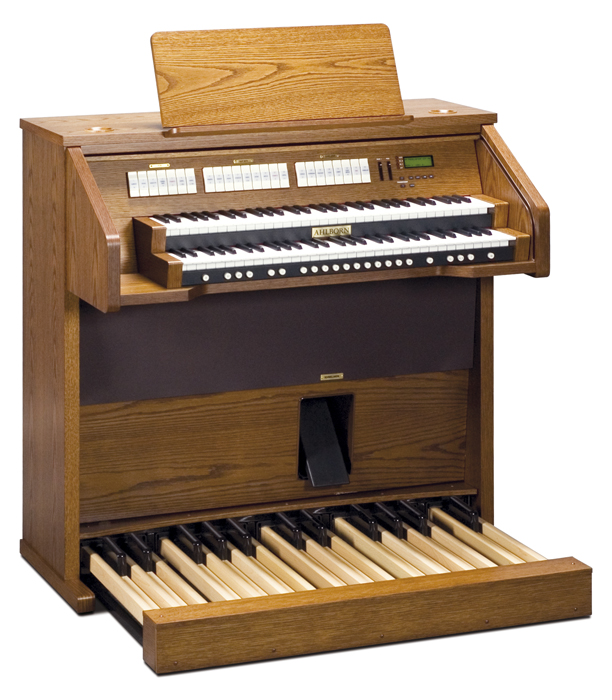

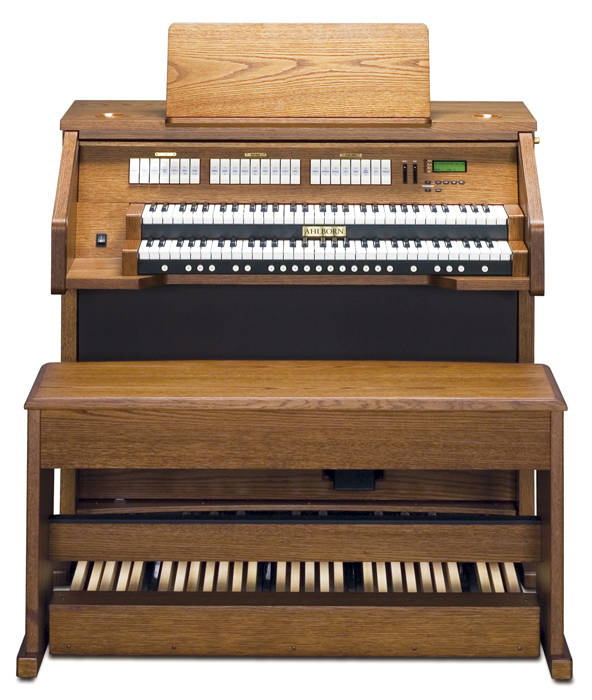

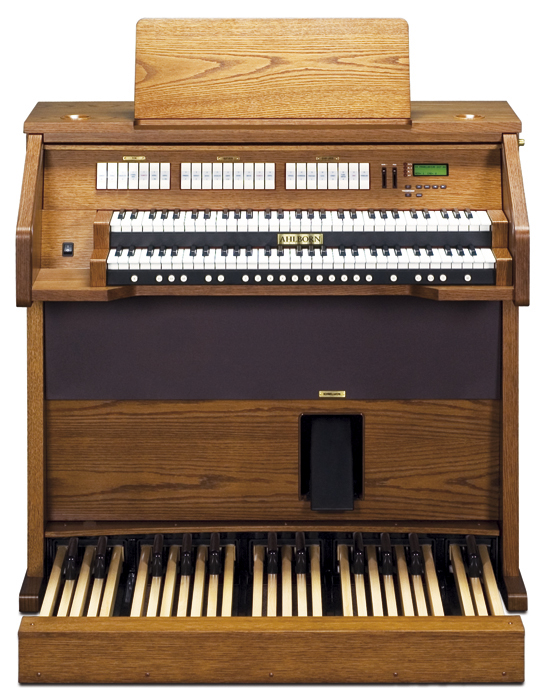

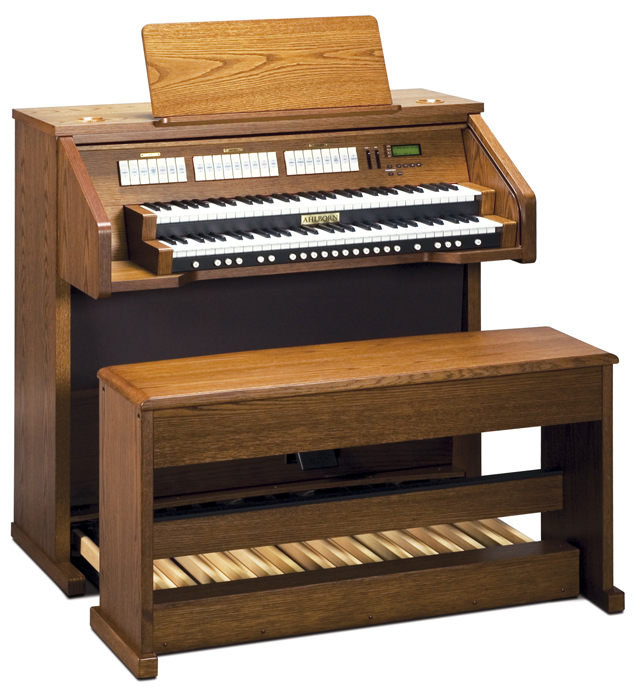

NOTE: The product's pictures are related to the PRAELUDIUM 227 organ model. For what it concerns the measures and the layout of the PRAELUDIUM 230 organ model, please refer to the model PRAELUDIUM II.
