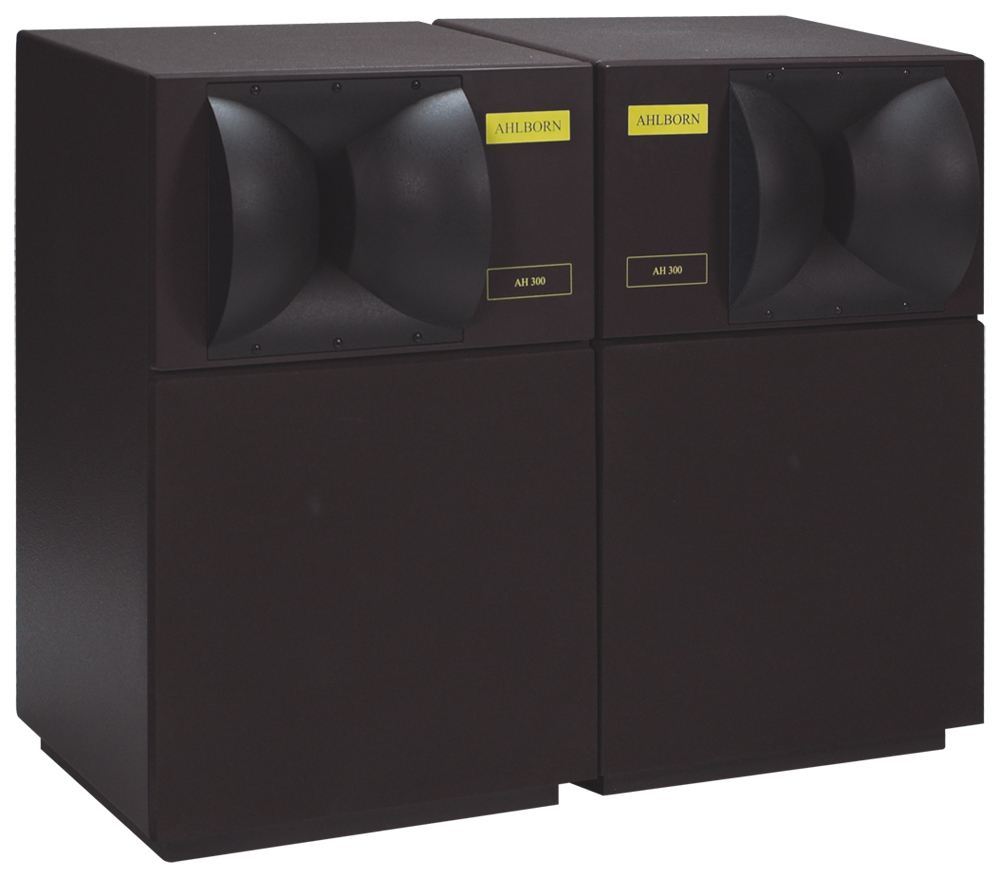

AH 300
SPECIFICATIONS
LOUDSPEAKER |
|
Power (EIA RS 426 A) |
Continuous: 300 W Peak: 600 W |
Nominal impedance |
8 ohm |
Sensitivity (SPL 1W/1m) |
94 dB |
MAX SPL dB 118 117 |
119 dB |
Frequency response |
30 Hz - 20.000 Hz (± 3db) |
Crossover frequency |
1000 Hz / 12 dB/octave |
Components |
Low: 15" woofer long throw High: 1,4" driver horn loaded |
Construction |
Anti-scratch brown finish |
Dimensions (W x H x D) |
558 x 914 x 530 mm / 22" x 36" x 20.9" |
Weight |
50 kg / 110.2 lbs |
Accessories |
Speaker supporting bracket |
Powered amplifier recommended for the AH 300 speaker cabinets: |
|
